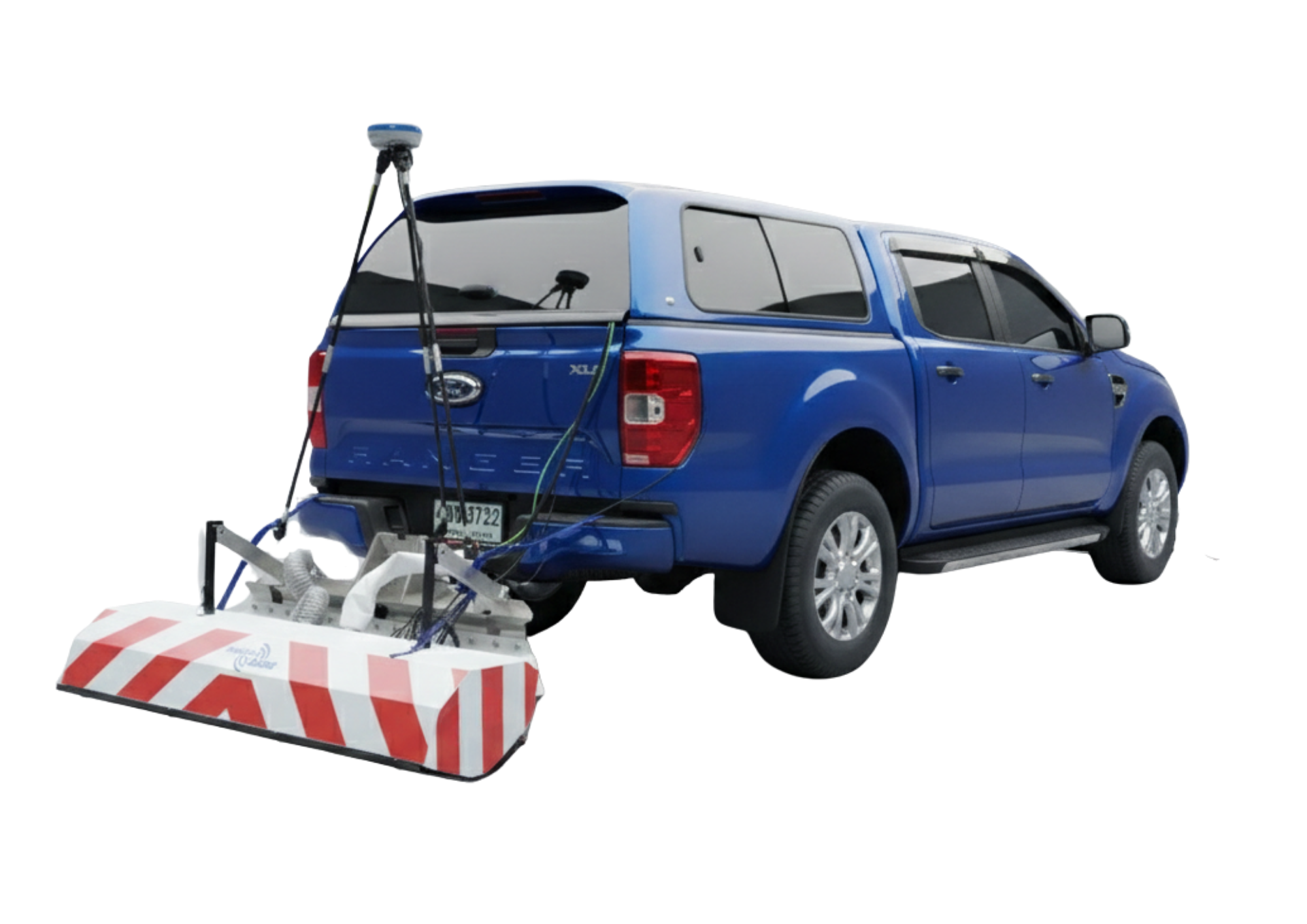

GPR RAPTOR 45 Multi-Channel GPR Survey Vehicle for Infrastructure Projects

GPR RAPTOR 45 is a multi-channel Ground Penetrating Radar (GPR) survey vehicle system designed for continuous inspection of subsurface pavement structures and underground utilities in large-scale infrastructure projects.

The system has been developed to support highway surveys, urban road assessments, and infrastructure projects that require high speed and high accuracy data acquisition.

Working Principle of GPR RAPTOR 45

GPR RAPTOR 45 transmits high-frequency radar waves into the subsurface pavement layers. When the waves encounter objects or material layers with different electrical properties, reflections are generated and recorded for analysis.

The system enables the evaluation of:

• Pavement layer thickness
• Location of underground utilities and pipelines
• Voids beneath road surfaces
• Material layer anomalies or structural irregularities

Data is continuously recorded and processed to generate both 2D and 3D visualizations for engineering analysis.
