Transverse Profile Logger (TPL) is a vehicle-mounted system for measuring the transverse profile of pavement surfaces. It collects Transverse Profile data for analyzing Rut Depth.

ROMDAS TPL is a module that can be integrated with a road survey system and does not require a dedicated vehicle.

The Laser version of the TPL system uses Single-Point Laser Sensors to measure pavement surface elevation across the transverse direction. According to the manufacturer’s documentation, configurations with 15 or 9 sensors are available, with other configurations available according to project requirements.

Data Collection and Analysis

Transverse Profile
Collects transverse pavement profile data to represent the elevation and shape of the pavement surface throughout the surveyed section. The data can be used to analyze pavement deformation and changes in the transverse profile.

Rut Depth
Analyzes Rut Depth from Transverse Profile data using a simulated 2 m straight-edge method, based on the operating principle specified in the manufacturer’s documentation.

Key Features

• Laser-based Transverse Profile measurement
• Supports 15 or 9 Single-Point Laser Sensors according to the selected configuration; other configurations are available on request

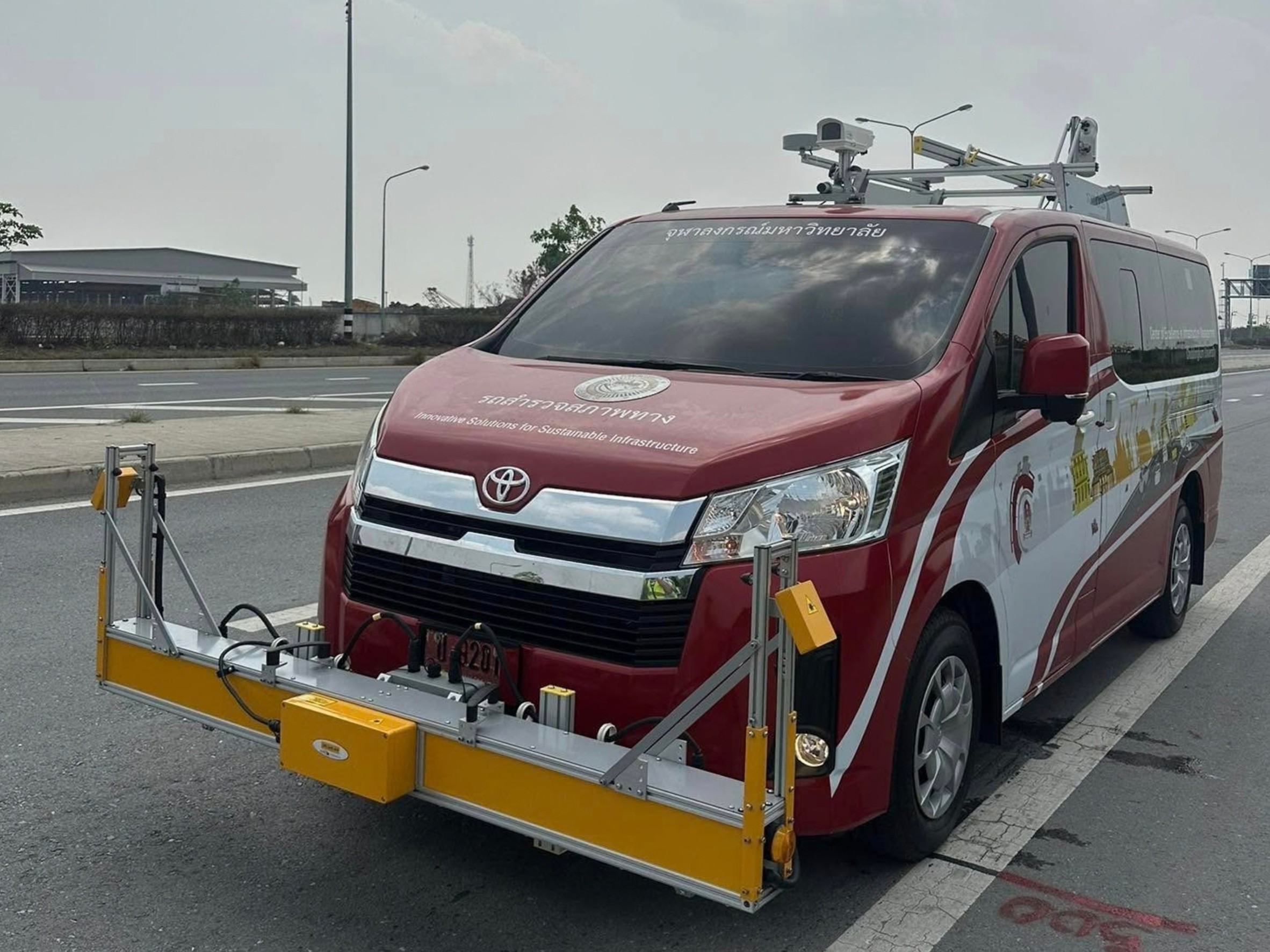

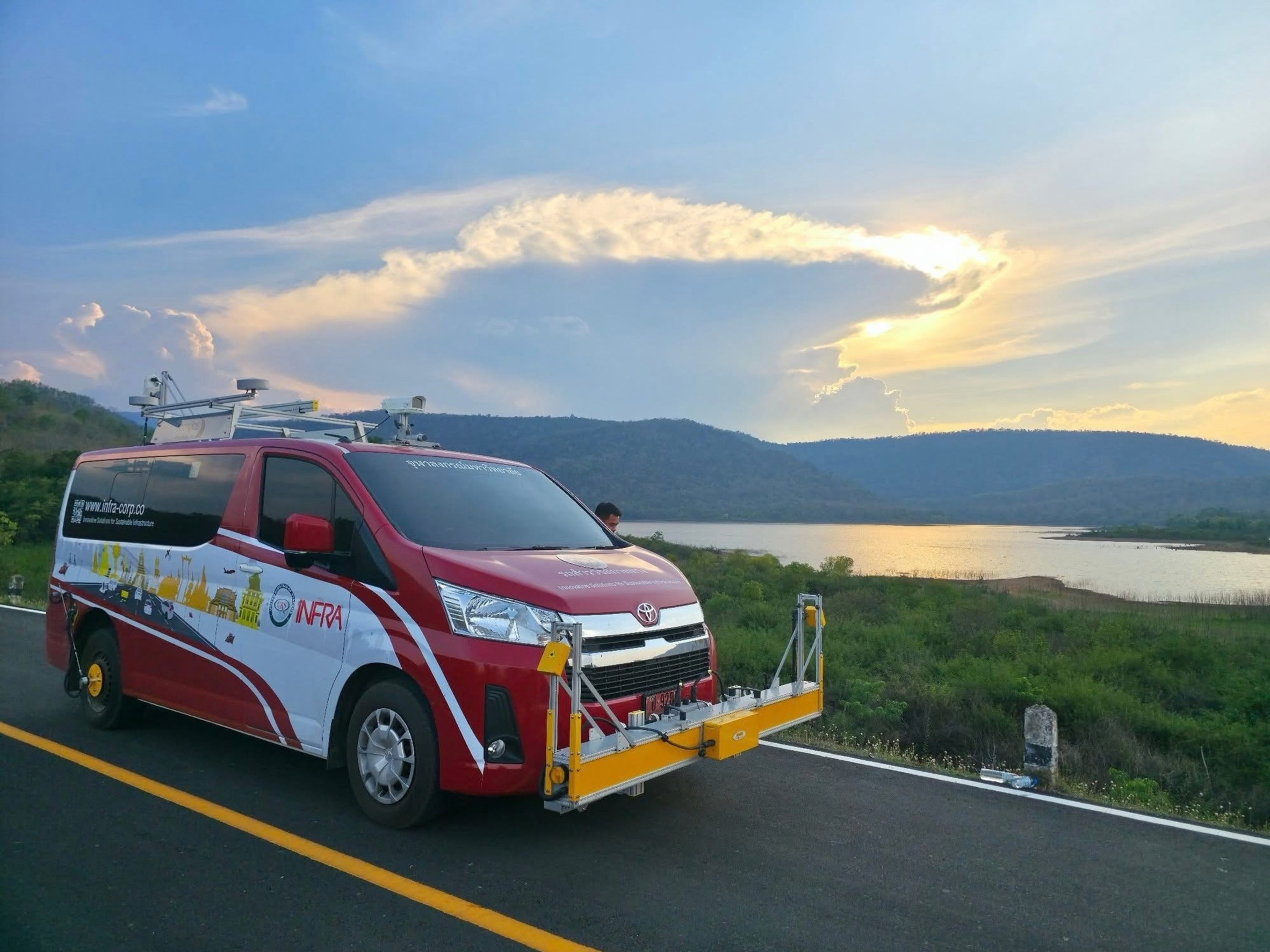

• Front/bumper-mounted installation on the survey vehicle
• The TPL unit can be removed from the vehicle for storage when not in use
• Can be installed on an existing vehicle with minimal modification according to installation requirements
• Users can define the interval for Transverse Profile data collection, such as 1 profile per 1 meter
• Supports both project-level and network-level surveys
• Data can be processed to calculate Rut Depth according to the specified method
